Federal Stance XL / RHD Motion Freecoaster Wheel - Black 9 Tooth

$205.00
$205.00

Description

A high quality, pre-laced rear wheel, created by an ensemble of aftermarket products. Federal's Motion Freecoaster is made using a 6061-T6 Aluminium Alloy shell and heat-treated hollow Chromoly axle. This hub features a completely new axle along with a Nylon clutch retention spring. By replacing the traditional spring and ball system, the new hub requires less maintenance and is a lot easier to disassemble. The Nylon retention spring also reduces the internal drag and enables faster rolling and smoother crankflips. The triple box section of the Stance XL Rim, combined with the wide profile makes the rim both stronger and stiffer than conventional rims and also helps to reduce the possibility of pinch flats. Federal have also changed the material from Aluminium 6061 to 6066 which increases the strength by approximately 30%. All held in place by Federal's Stance Butted Spokes and supplied with both drive side and non-drive side guards and an XL rim tape.

Weight

1.377kg/ 3lbs 1oz

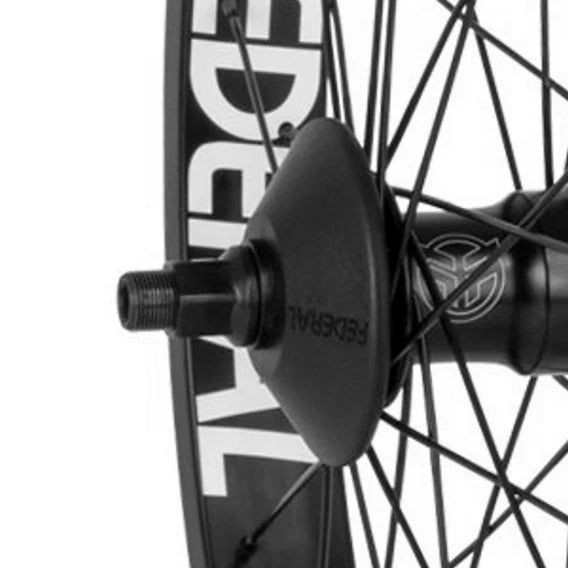

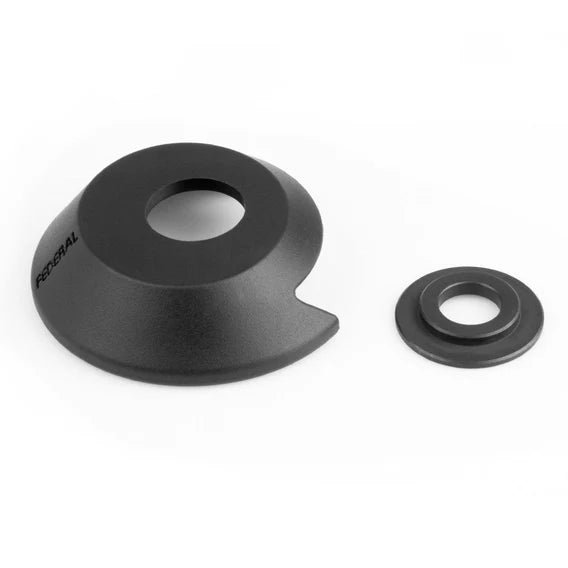

Federal Right Hand Drive Motion Freecoaster Hub With Guards

6061-T6 Alloy shell
Heat-treated hollow 14mm male axle with 8mm Allen broach
Chromoly axle and 17mm nuts
Nylon clutch retention spring
7905 ACD (Drive side)/ 6202 (Non-drive side) sealed bearings

Click here for a PDF with exploded drawing and instructions

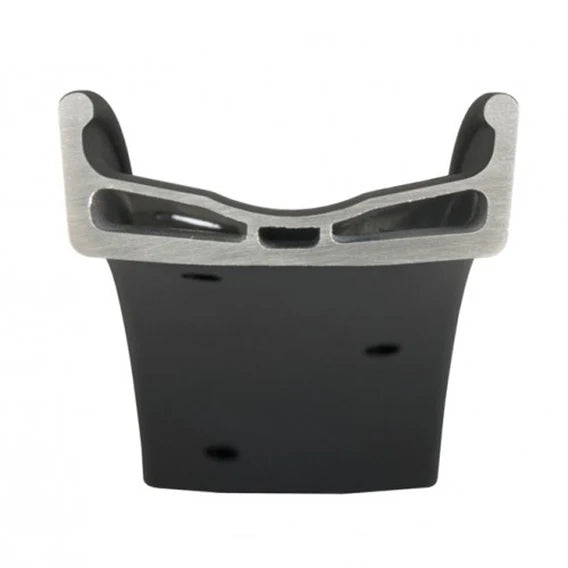

    Federal Stance XL Rim

    6066 Aluminium
    Double wall
    Welded seam
    36 hole
    15mm tall
    40mm wide
    ERD: 394mm

      Federal Stance Butted Spokes

      Extra thick at the J-bend
      Brass nipples
